NOVO K35 Series Tubular Motor
Tubular motors are mainly used for roller blinds, Roman blinds, sunshades, projection screens, etc
Specifications
- Brand
- NOVO
- Model
- NOVO K35 tubular motor series parameters
- Ouality Guarantee
- 5 years warranty

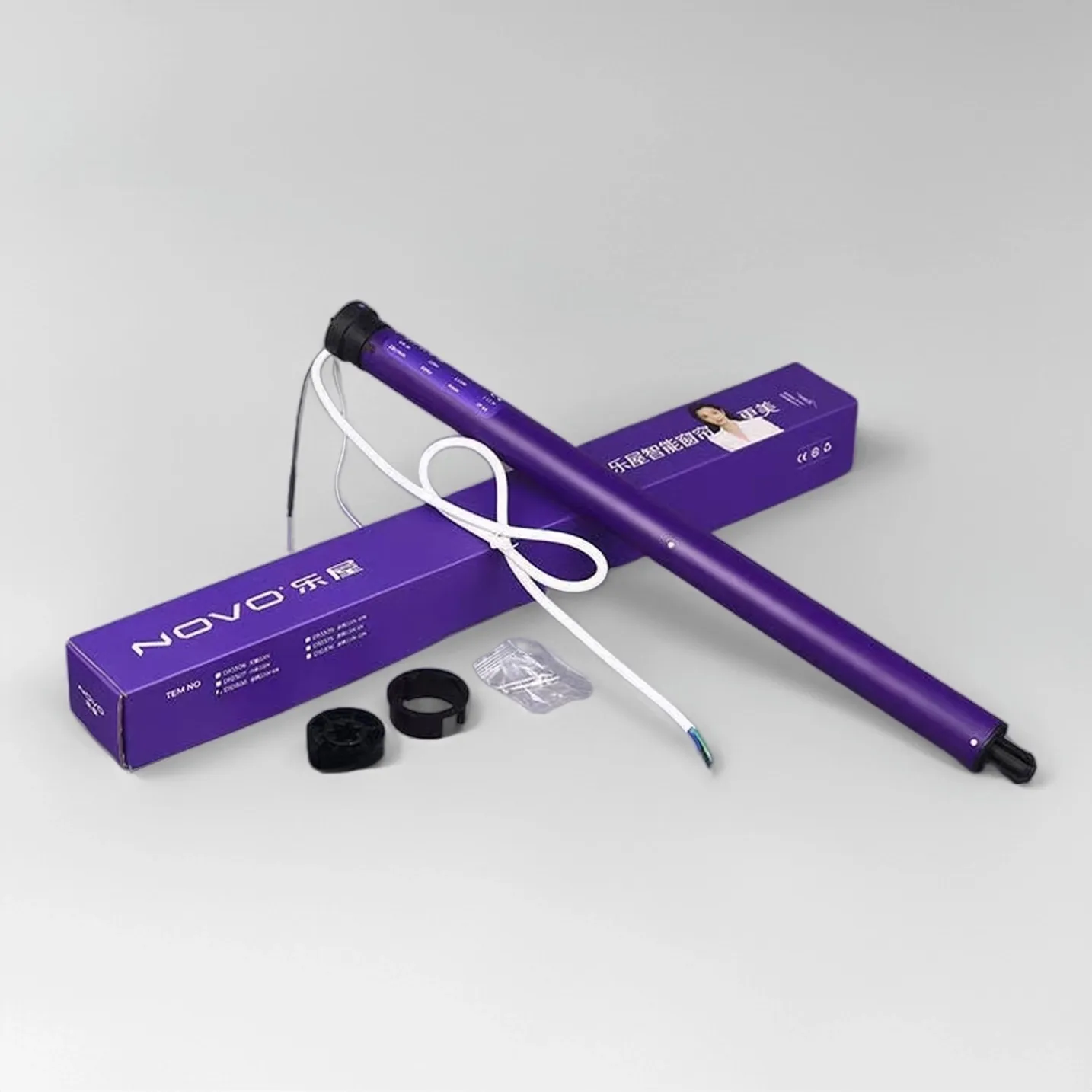

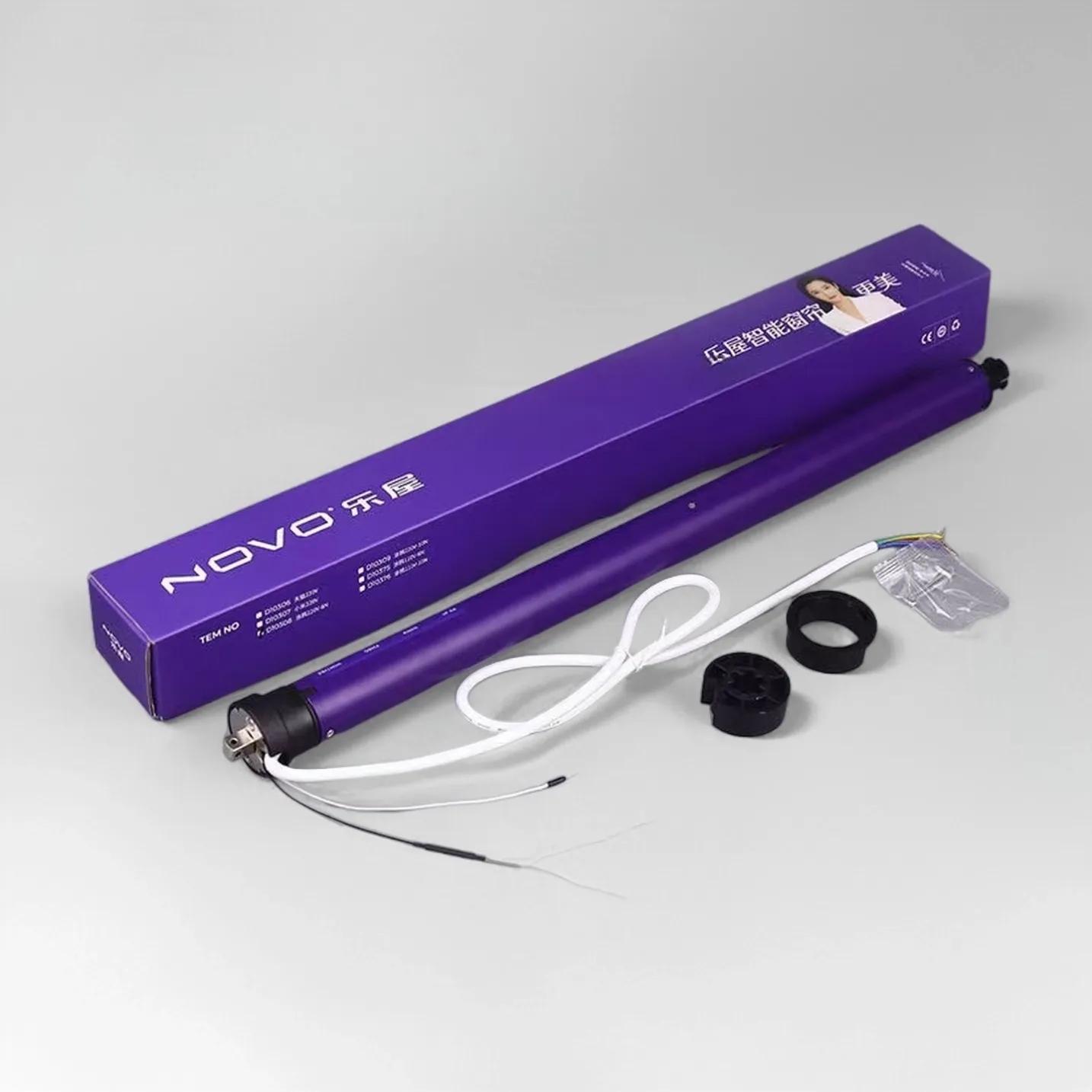

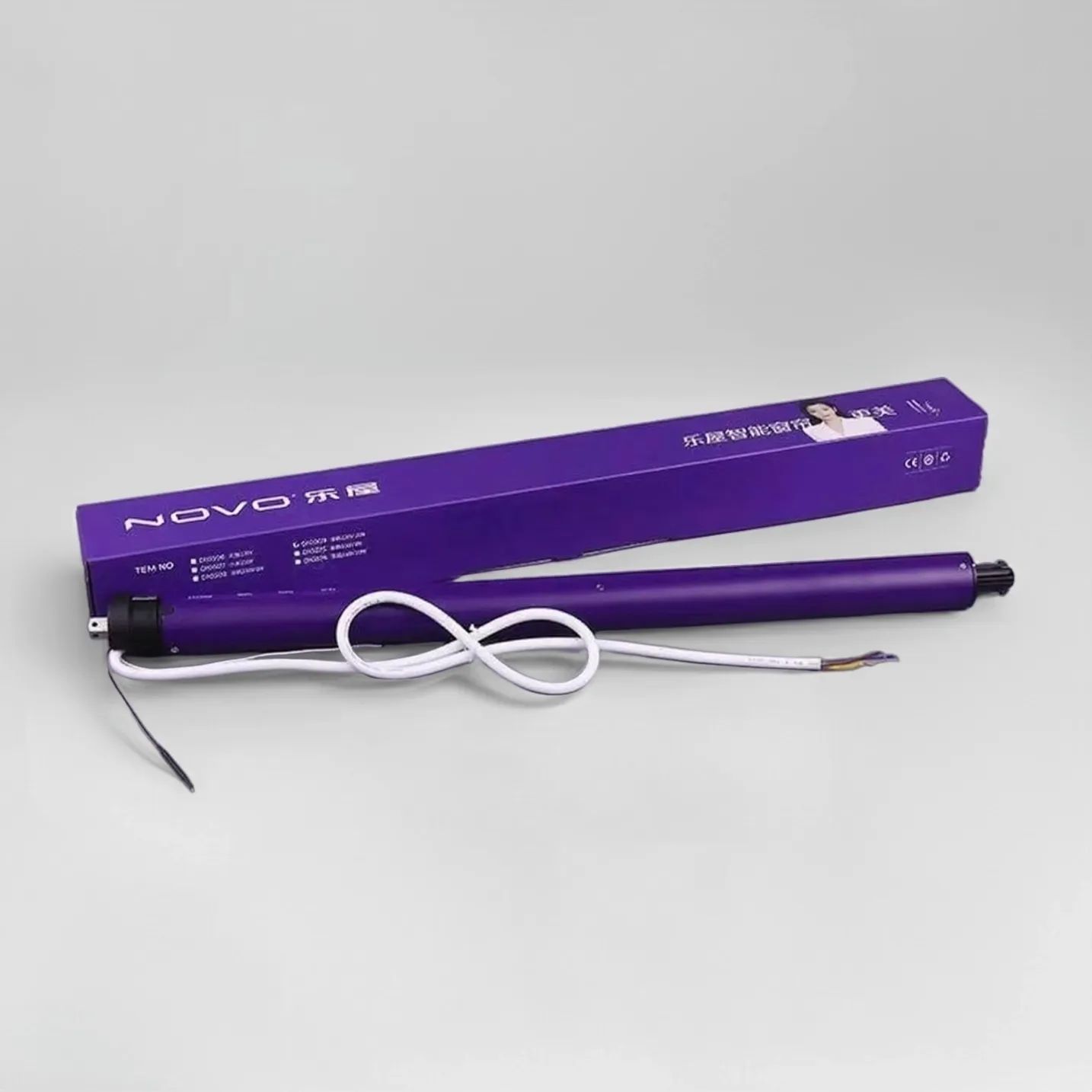

NOVO K35 Roller Blind Tubular Motor
The K35 is a 35‑mm diameter AC tubular motor, designed for residential and commercial roller blinds, zebra blinds, Roman shades and projector screens. It fits Φ40‑55 mm roller tubes, supporting heavy‑load large‑size window covering applications.

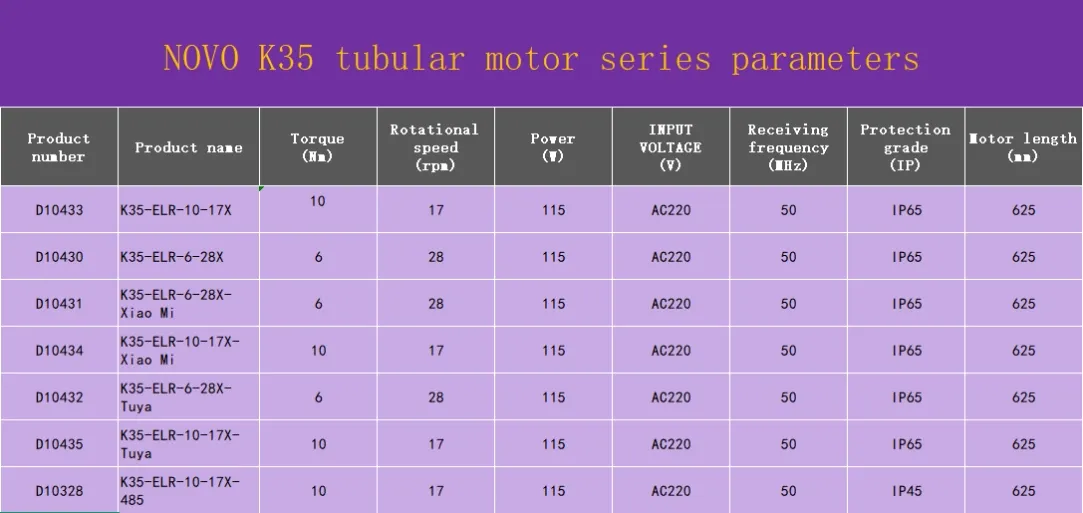

Basic Hardware Parameters
- Input Voltage: AC 110‑240 V, 50/60 Hz
- Torque Options: 6 N·m / 10 N·m
- Rotation Speed: 28 rpm (6N·m), 17 rpm (10N·m)
- Rated Power: 115 W
- Noise Level: ≤31.2 dB
- Protection Class: IP44 / IP65 (ELR waterproof version)
- Built‑in brake, helical silent gearbox, reinforced copper heat‑dissipation structure, anti‑slip 梅花 output shaft
- Safety features: obstacle‑stop, soft‑rise by light‑tap (select models)
- Warranty: Official 5‑year warranty
Main Version Classification (Selection Guide)
- Standard RF Version K35‑IP: RF radio remote control, electronic limit setting, no APP needed; cost‑effective for conventional renovation projectsNOVO
- Mijia Bluetooth‑Mesh Version: Works with Mijia APP, supports Xiao‑AI voice, timing & scene automation; requires Bluetooth‑Mesh gateway for remote access
- Tuya WiFi‑BLE Version: Compatible with Tuya APP, Tmall Genie, integrates into the Tuya smart‑home ecosystem
- ELR Waterproof Version: IP65 waterproof rating, obstacle‑stop & light‑tap trigger function; suitable for balcony, outdoor sun‑shading scenarios
- Matter Version: Cross‑protocol interoperability, directly connects to HomeKit, Alexa, Google Home, oriented for overseas multi‑ecosystem projects
- RS485 Serial‑Port Version: Two‑way status feedback, for centralized engineering control of smart‑building projects
Control Methods
‑ RF remote (single‑channel & group control)
‑ Mobile APP & smart‑speaker voice control
‑ Light‑tap trigger / obstacle auto‑stop (ELR models)
‑ Support timing, percentage position adjustment and scene linkage
Installation Compatibility
‑ Roller Tube: Φ40 mm, Φ43 mm, Φ50 mm, Φ55 mm aluminium roller tubes
‑ Application: indoor roller blind, zebra blind, Roman shade, wood venetian blind, projection screen, large‑size sun‑shading
‑ Mounting: top‑mount / side‑mount brackets
Basic Operation Instructions
- Remote Code Pairing: Short‑press the setting button on motor head until vibration. Within 10 s press the P1 key on remote; second vibration confirms successful pairing.
- Travel‑Limit Setting: Press P2 key on remote to enter limit‑setup mode, set and save upper & lower end positions respectively.
- Running‑Direction Reversal: Long‑press P2 until vibration. Within 10 s, long‑press stop‑button for 5 seconds to swap motor rotation direction.
Note: Mijia Bluetooth‑Mesh version only supports short‑range Bluetooth control without gateway; remote access requires a Bluetooth‑Mesh gateway.
